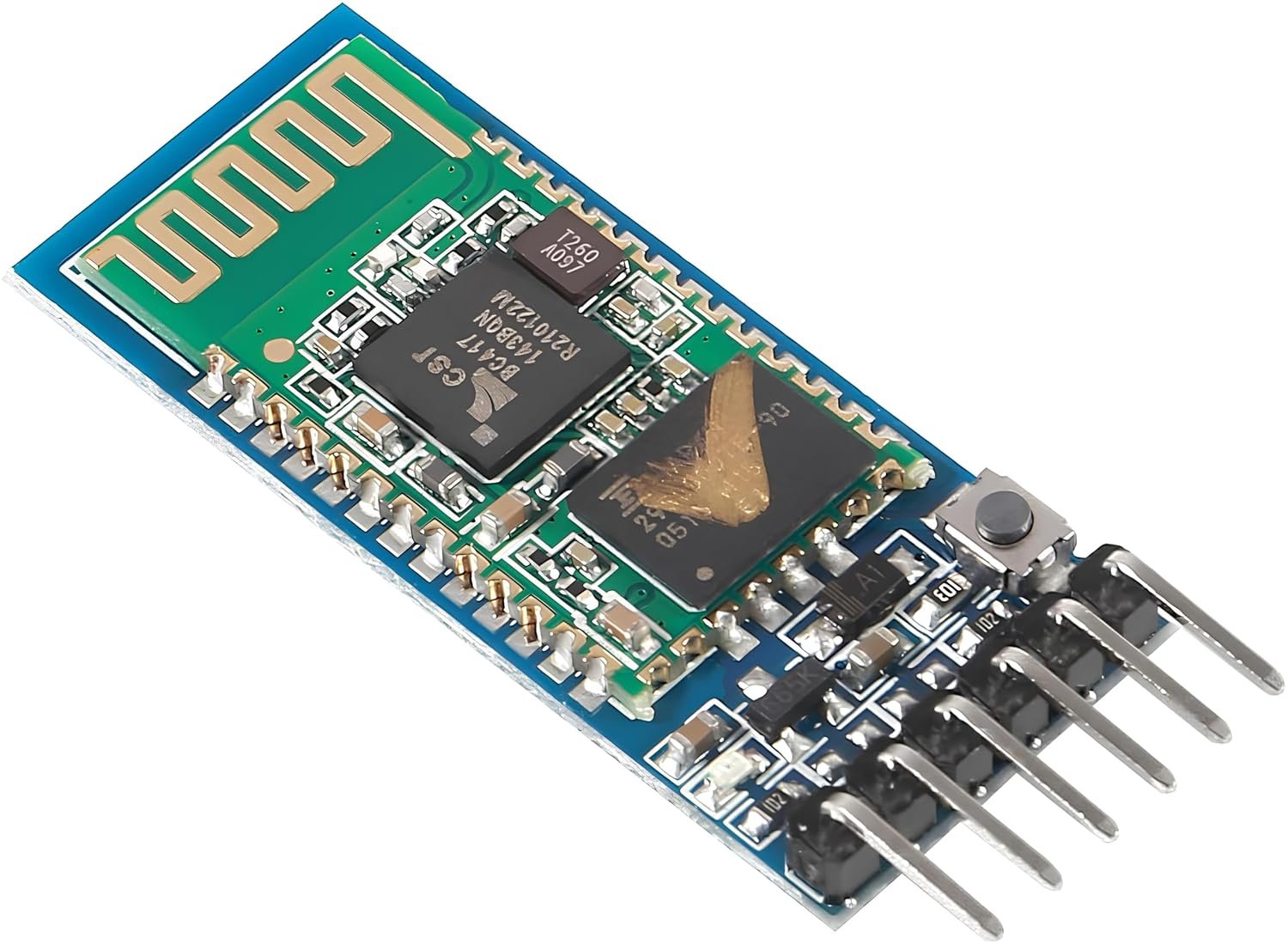

HC-05 Wireless Bluetooth RF Transceiver Master Slave
☛ Master-slave integration 2-IN-1 HC-05 Module: the original chip corresponds to the master-slave integration function. Master-slave integration can switch between master and slave modes. Through AT command setting, you can select master mode or slave mode.
☛ AT Setting: Press the button and power on the module to enter the AT mode. AT commands are executed only in AT mode, which is easy to use. Default baud rate:4800,Default pin:1234, the default name is HC-05.
☛ On-board 3.3V voltage regulator chip, input voltage DC 3.6V-6V; When not paired, current about 30mA (due to LED lights flashing, current in the state of change); After the pairing succeeds, the current is about 10mA
☛ Working status indicator: Fast flashing LED means no Bluetooth connection, slow flashing means entering AT mode, double flashing means Bluetooth is connected and the port is opened.
☛ Tips:Do not connect the power supply to the signal pin, otherwise the module will be directly damaged. The input voltage must not exceed 7V. (Note: this item doesn’t works with iOS.)
☛ It’s ideal replacement to your wired serial connection
600 L
Shockley HC-05 Wireless Bluetooth RF Transceiver Master Slave Integrated Timer module Bluetooth Module 6 Pin Wireless Serial Port Communication BT for Arduino
HC-05 Wireless
HC-05 Module is an easy to use SPP (Serial Port Protocol) module, designed for transparent serial connection setup.HC-05 Master and slave Two in one module.
The factory setting is slave mode, but you can set this module to master mode so that you might be able to connect to other BT 2.0 devices.
HC-05 : You can quickly add the BT feature to your Arduin0 project, and then you can use your android phone to control some gadgets, such as: switch, LED.
Master and Slave 2-IN-1 HC 05 Module:Working Voltage 3.6V to 6V , Default baud rate:9600,Default pin:1234.The user can be set up.click the button into AT MODE.
Button: Can be switched via AT commands as master or slave mode by pressing the button, the device can be connected via AT commands specified.

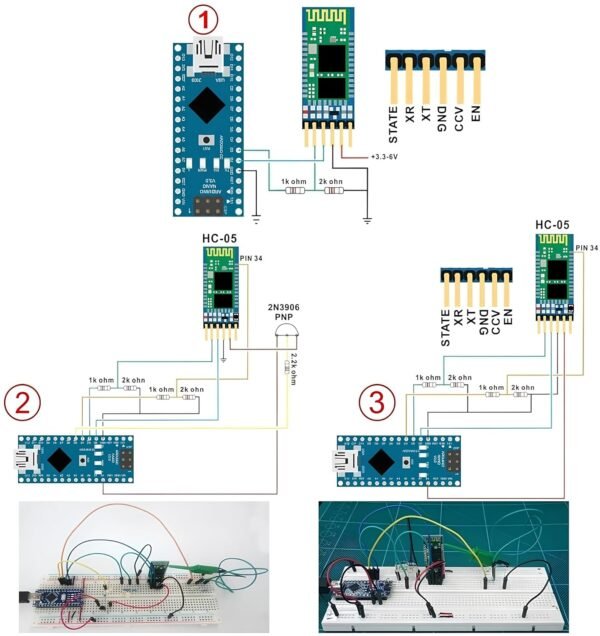

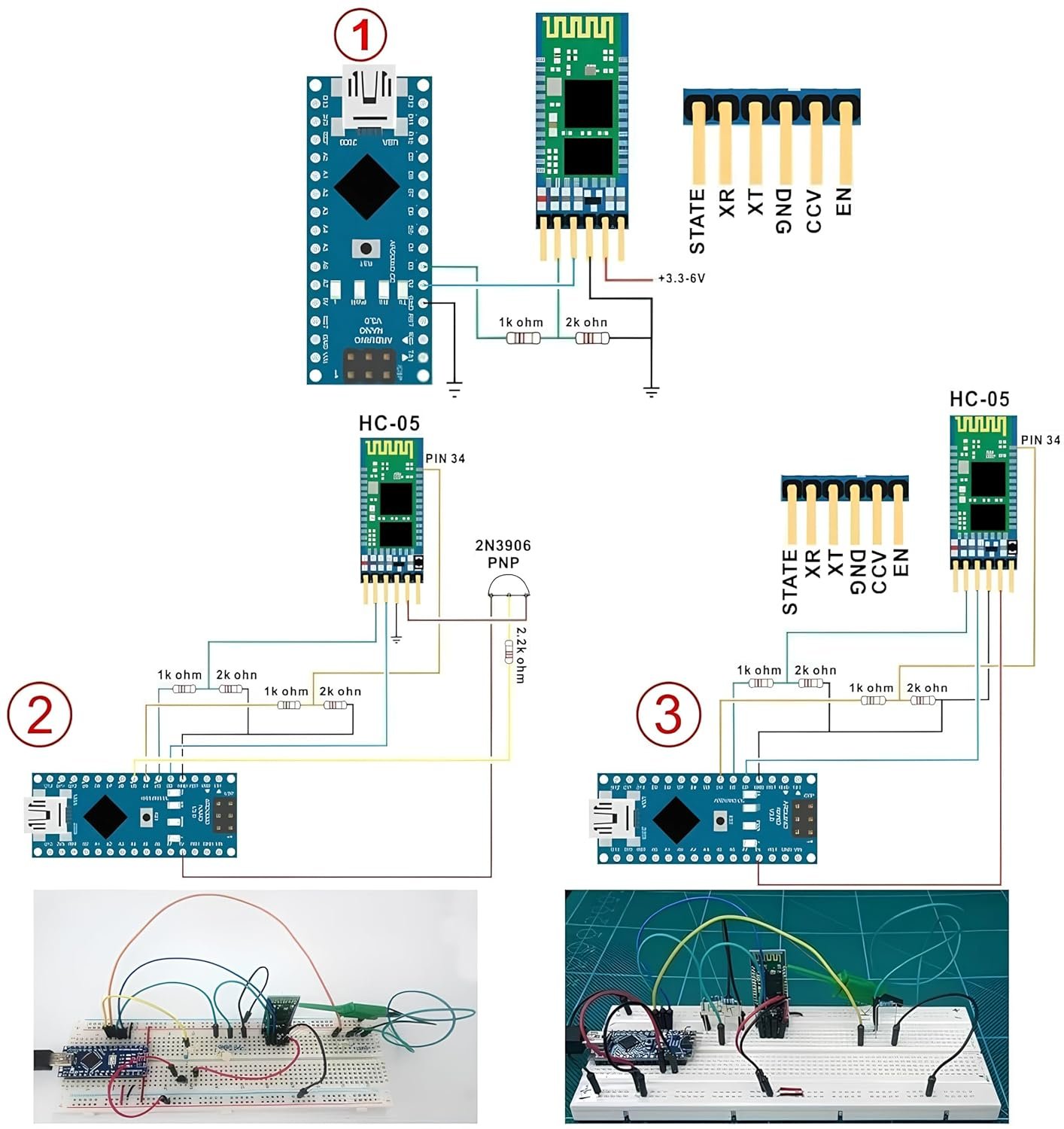

6 PIN Dopunt Cable : with this Dupont Cable, you can easily connect this HC-05 module to your Arduin0 Board.
Please note: iOS devices (iPhone) are not supported.
transceiver module
chip module bluetooth
Module Features:
With the connection status indicator, LED flash indicates no Bluetooth connection; Led slow flash indicates enter at command mode
On-board 3.3V voltage regulator chip, input voltage DC 3.6V-6V; When not paired, current about 30mA (due to LED lights flashing, current in the state of change); After the pairing succeeds, the current is about 10mA
Effective transmission distance of 10 meters in open area, more than 10 meters is possible, but not to ensure the quality of the connection
After pairing succeeds, can be used as full duplex serial port. No need to understand any BT protocol, but only support 8-bit data bits, 1-bit stop bits, no parity communication format. This is also the most commonly used communication format, does not support other formats!
Press the key and then power up the BT module to enter at mode, set parameters and query information.
Can switch host and machine mode from at command.
Note: this module does not suitable for IOS system.
Specifications:
PCB Size: 37mm (Long) *17mm (wide)
Weight: 3.5g
Input voltage: 3.6V–6V, prohibit exceeding 7V

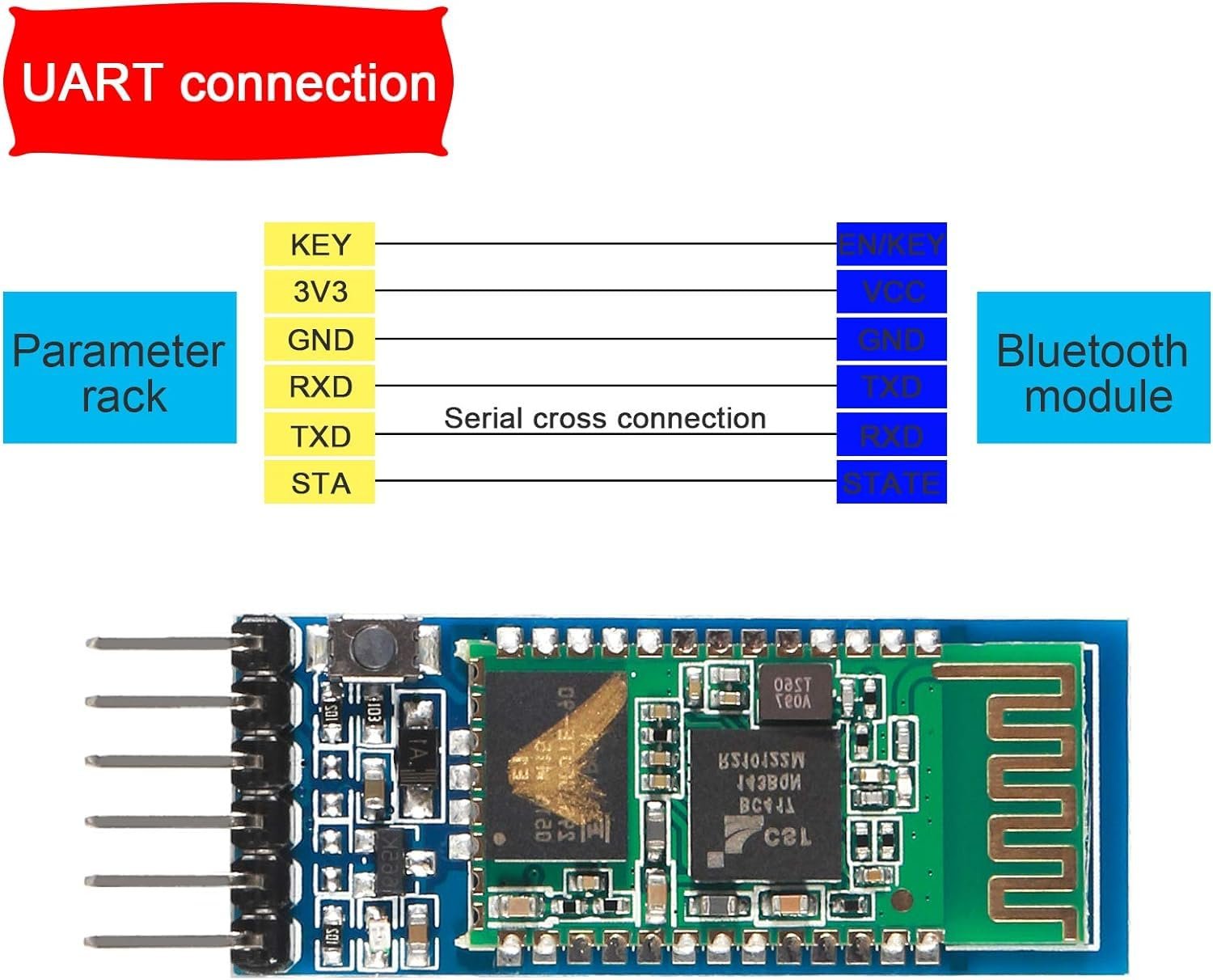

Leads 6 feet: EN/VCC/GND/RXD/TXD/STATE
Default baud rate:9600
Default pairing password:1234
Default pairing password:1234
Reference distance:10m
bluetooth serial module
