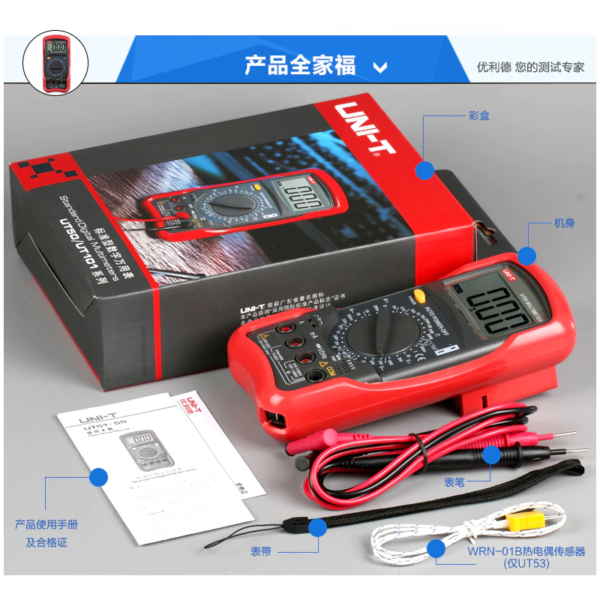

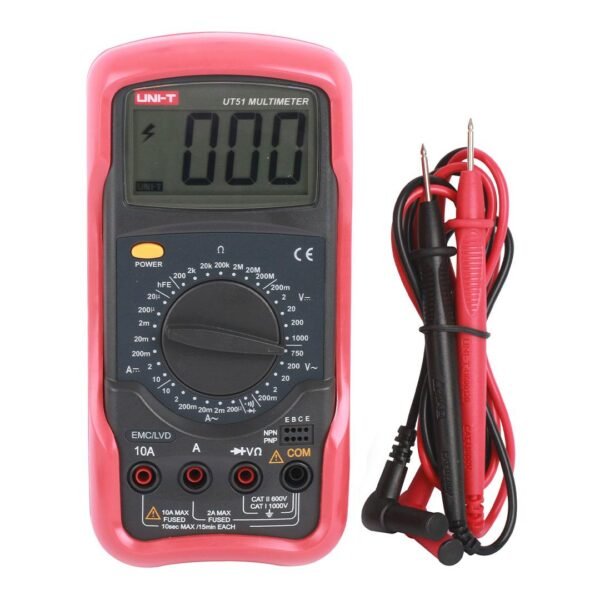

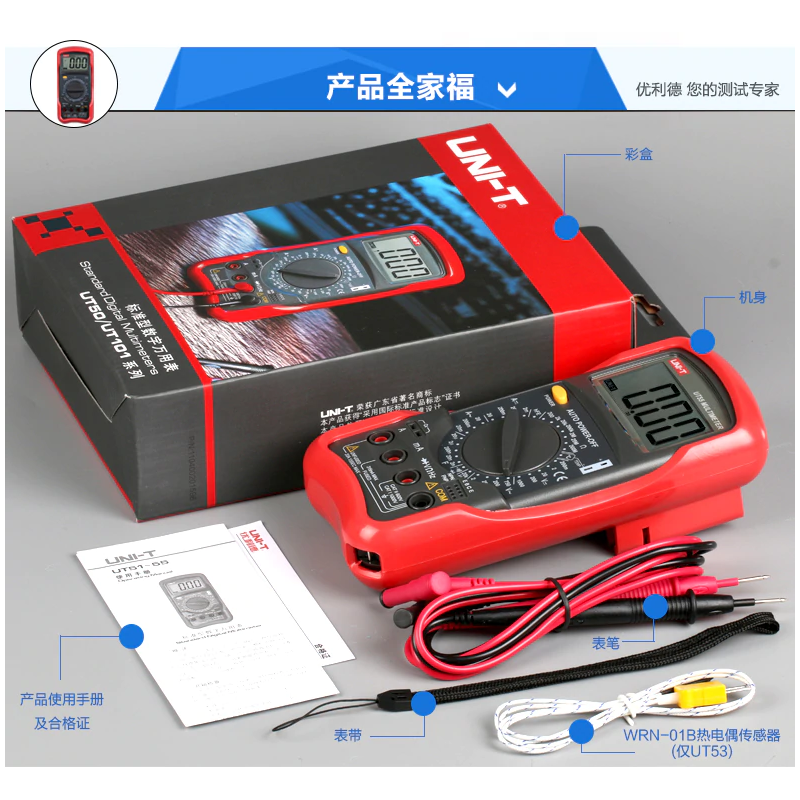

Multimeter UNI-T UT51
Modern digital multimeter with large LCD display that provides a better user experience. Voltage / current / resistance analysis,as well as diode, transistor and continuity tests.
This multimeter complies with IEC61010 standards: in pollution degree 2, overvoltage category (CAT I 1000V, CAT II 600V) and double insulation.
5,000 L 6,000 L
Modern digital multimeter with large LCD display that provides a better user experience. Voltage / current / resistance analysis,as well as diode, transistor and continuity tests.
This multimeter complies with IEC61010 standards: in pollution degree 2, overvoltage category (CAT I 1000V, CAT II 600V) and double insulation.
Manufacturer
UNI-T
Type of meter
digital multimeter
Measurement
AC current, AC voltage, continuity, DC current, DC voltage, resistance
Kind of display used
LCD
DC voltage measuring range
200mV/2V/20V/200V/1kV
DC voltage measuring accuracy
±(0.5% + 1 digit)
AC voltage measuring range
200mV/2V/20V/200V/750V
AC voltage measuring accuracy
±(0.8% + 3 digit)
DC current measuring range
20µA/0.2mA/2mA/20mA/200mA/2A/10A
DC current measuring accuracy
±(0.8% + 5 digit)
AC current measuring range
(1) indirect measurement)
1) indirect measurement
0.2mA/2mA/20mA/200mA/2A/10A
AC current measuring accuracy
±(1% + 3 digit)
Resistance measuring range
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
Resistance measuring accuracy
±(0.8%+1 digit)
Diode test
1mA @3V
Continuity test
acoustic indication, <70Ω
Conform to the norm
CAT I 1000V
CAT II 600V
EN 61010
Dimensions (W x H x D)
190x88x34mm
