Recessed latch in dish with bulit-in spring M908S

Recessed latch in dish with bulit-in spring M908S

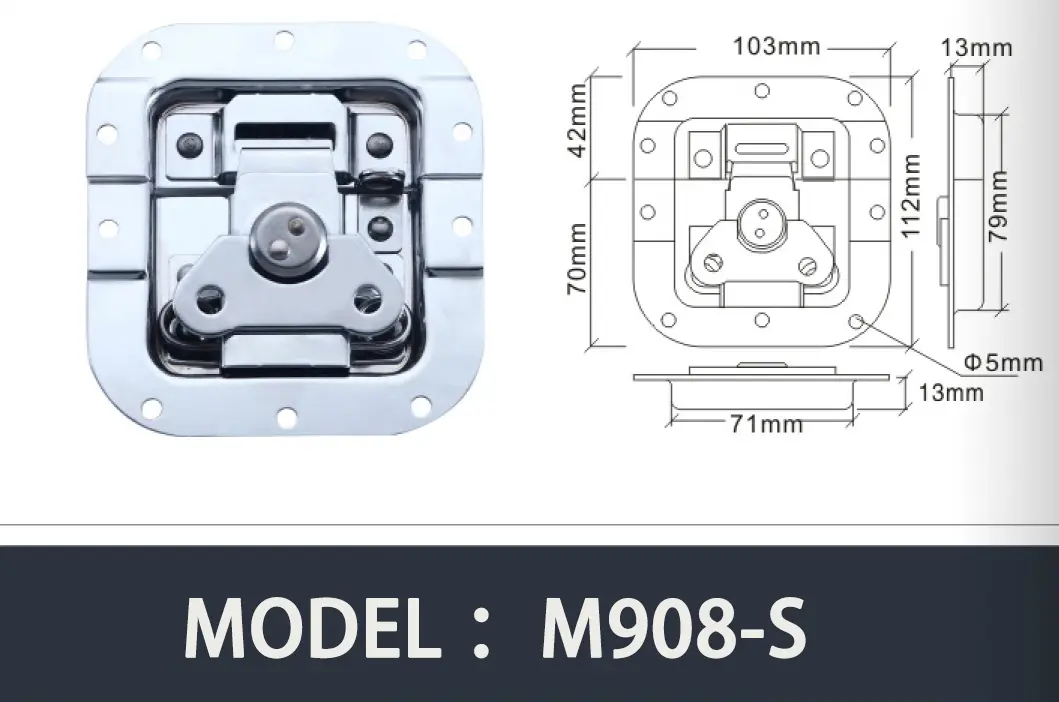

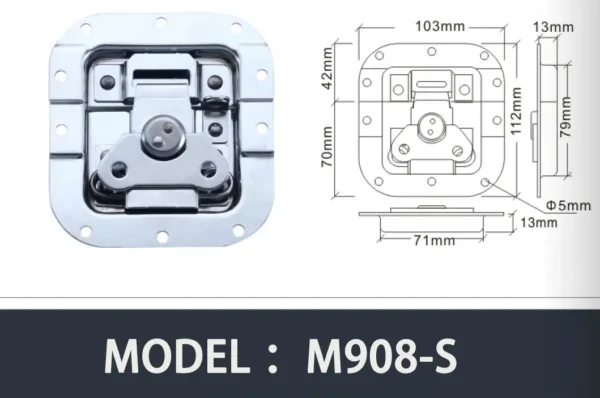

This lock is of the same size as M908, with exact dimensions of 112*104MM and a height of 12.5MM. It comes with an Offset, which can be embedded in a wooden board or clamped onto aluminum materials.

MODEL: M908S
Materials Option: Mild Steel or Satinless steel 304
Surface Treatment: Zinc plated for mild steel ; Polished for stainless steel 304
Net Weight: Around 141 to 145 gram
Holding Capacity: 50KGS or 110LBS or 490N
