TT-Technic UA6013L Capacitancemeter

TT TECHNIC

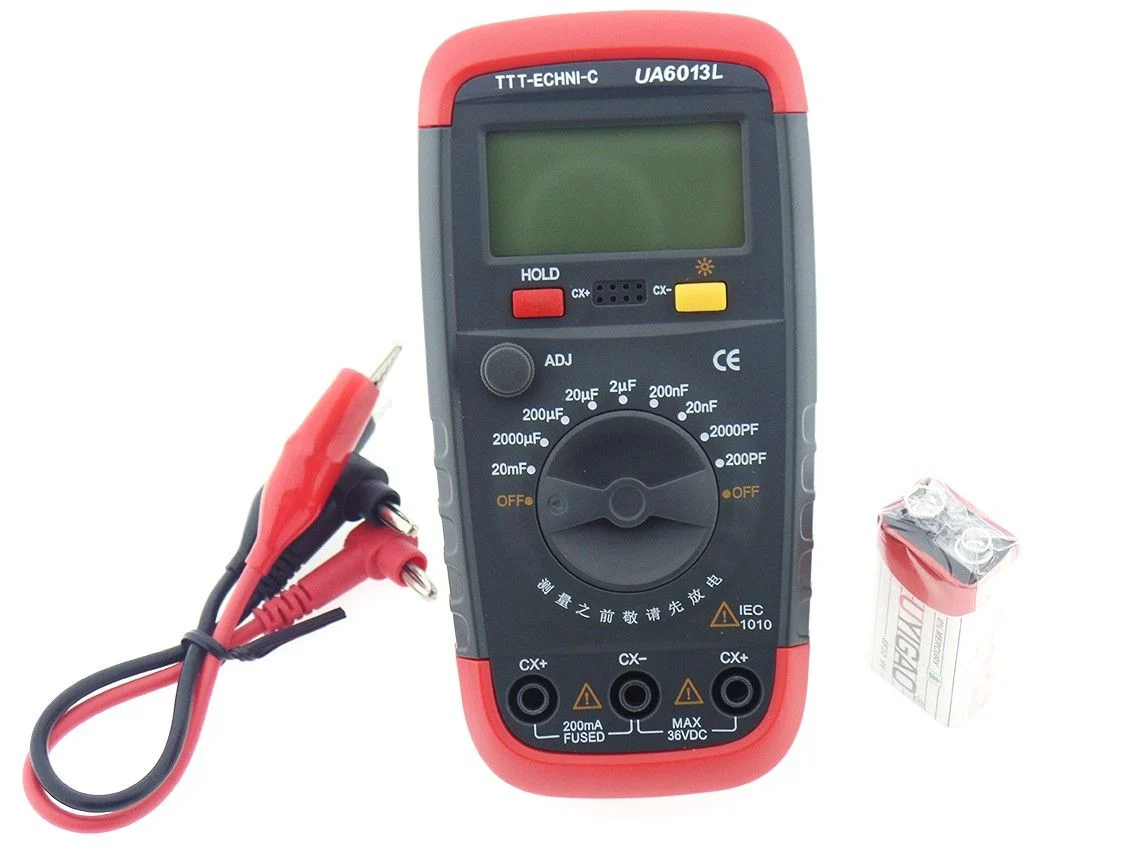

Capacitor Meter UA6013L – Measuring Instrument
DIGITAL MEASURING DEVICE CAPACITER TT T-ECHNI-C UA-6013L

FEATURES

LCD Display 3½

Digital Measurement limits: 0.1 pF – 20 MF 9

Adjustment range: 200pF – 2nF – 20nF – 200nF – 2µF – 20µF – 200µF – 2000µF

Easy and accurate reading High measurement accuracy Ability to measure in strong magnetic fields High reliability and durability with LSI circuit Overload protection at input Low consumption, providing clear reading even in bright environments Illuminated LCD display Keypad for one-handed use
Capacitor Meter UA6013L – Measuring Instrument Features

UA6013L High Precision Digital LCD Capacitor Capacitance Meter Tester. It is a professional capacitance meter with wide measuring range, stable performance and accuracy result. Easy to read with large LCD display and white backlight.
Applied with CMOS dual slope A/D converter, which is automatic in zeroing and polarity selection
Wide measuring range, data hold function, more practical
Large LCD display with white backlight, easy to read
Maximum display value: 1999(3 1/2)
Low battery indicator
Technical Specifications
Measurement Range: 200pF / 2nF / 20nF / 200nF / 2μF / 20μF / 200μF / 2000μF / 20mF
Accuracy: ±0.5%±20digit(200pF/2nF/20nF/200nF/2μF/20μF/200μF) / ±2.0%±20digit(2000μF) / ±4.0%±20digit(20mF)
Resolution: 0.1pF / 1pF / 10pF / 0.1nF / 1nF / 10nF / 0.1μF / 1 μF / 10μF
Test Frequency: 800Hz(200pF/2nF/20nF/200nF/2μF) / 80Hz(20μF) / 8Hz(200μF/2000μF/20mF)
Power Supply: 1 * 9V Battery (not included)
