Description

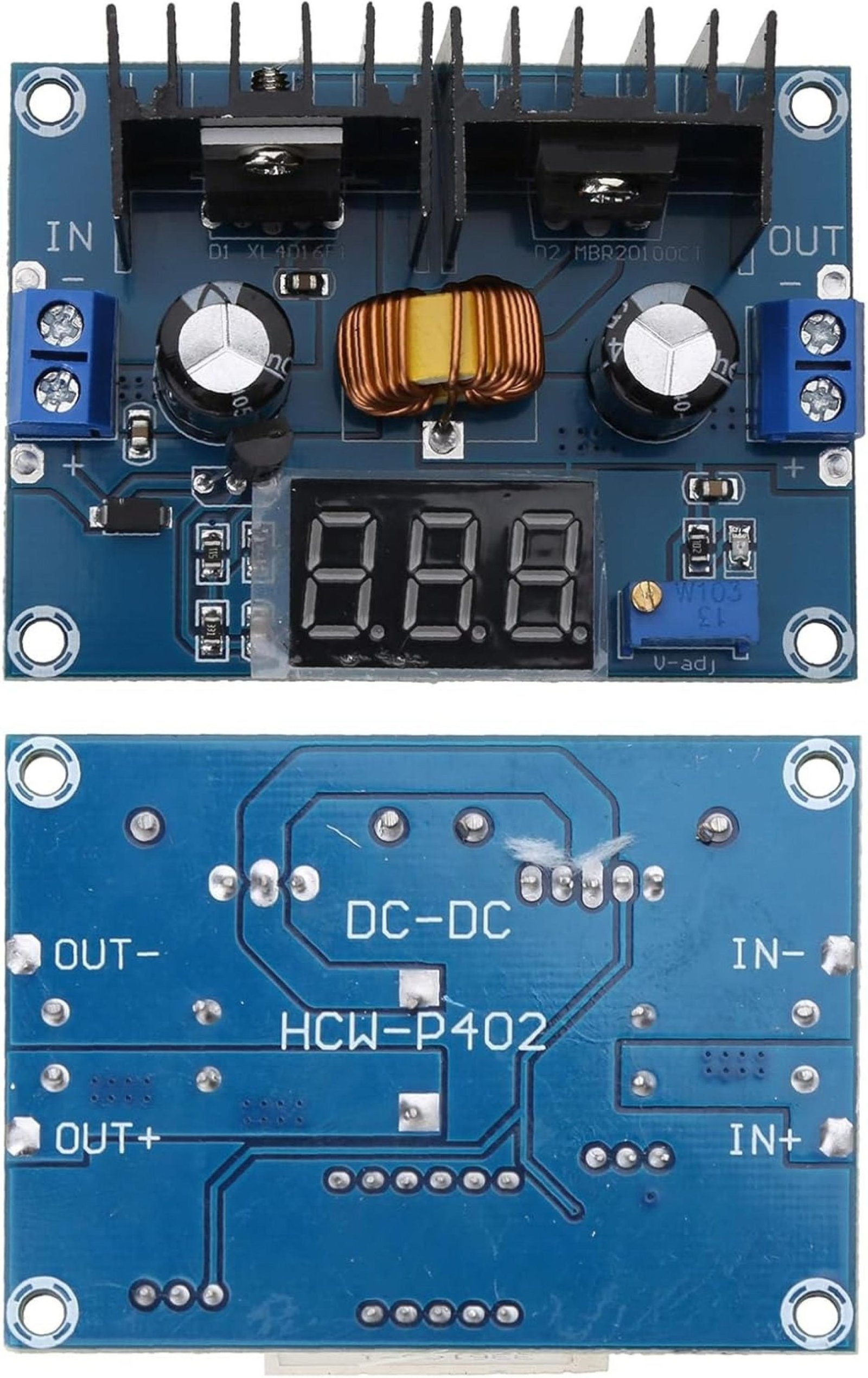

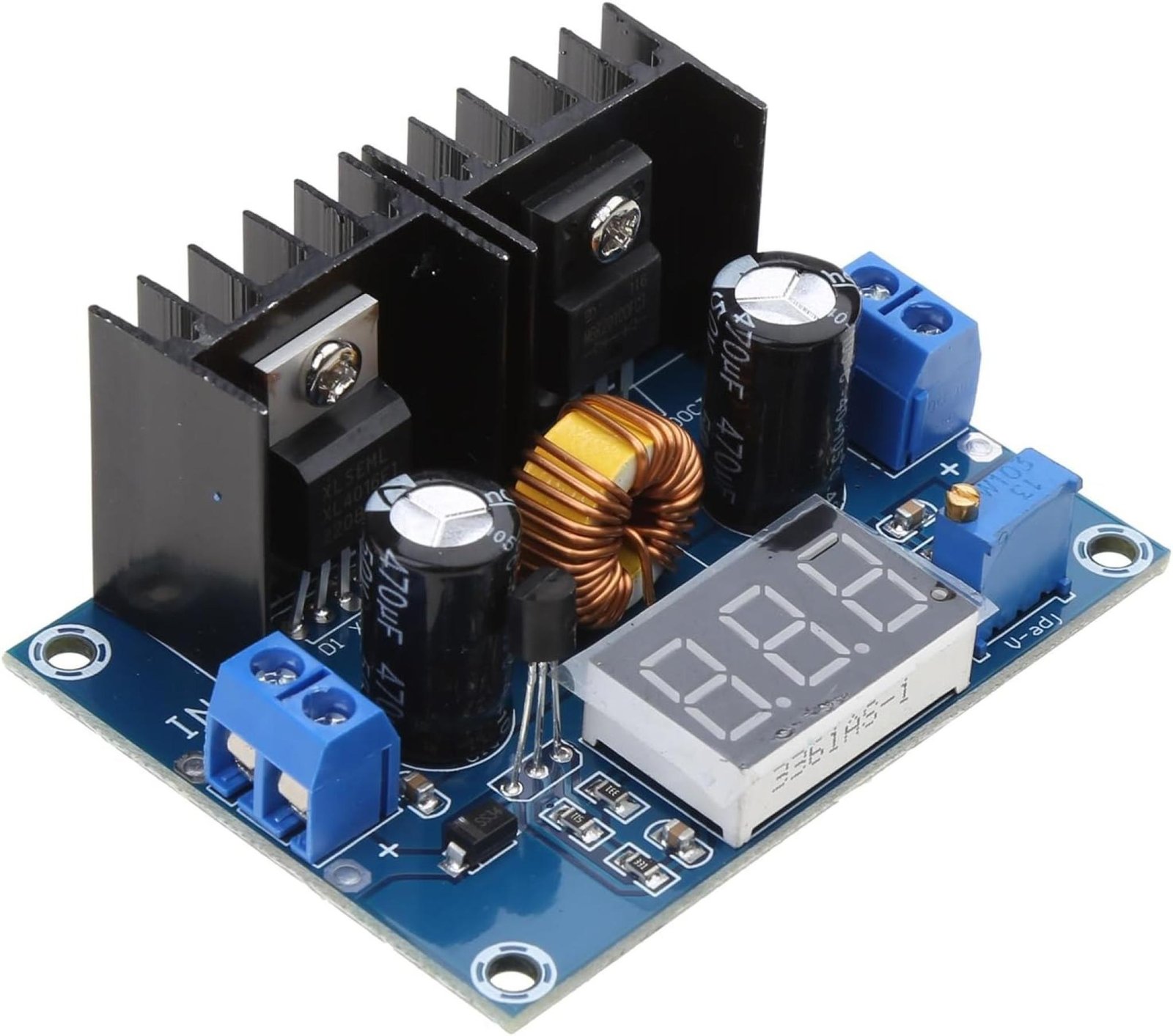

The XH-M404 voltage regulator module, also known as XL4016 or HCW-P402, is a robust and efficient solution for stepping down voltage in direct current (DC) applications. Equipped with a digital display, this module allows for easy adjustment and monitoring of the output voltage, making it ideal for a wide variety of electronic projects. Featuring a wide input and output voltage range, short-circuit and over-temperature protection, and 94% conversion efficiency, this regulator is perfect for hobbyists and professionals alike.

Technical characteristics
Product Name: Voltage Regulator Module
Product Model: XH-M404 (also known as XL4016 or HCW-P402)
Voltage Mode: PWM Modulation
Input Voltage: DC 4-40V
Output Voltage: DC 1.25-36V
Maximum Current: 8A (5A recommended for long time working)
Maximum Power: 200W
Conversion Efficiency: 94% Switching
Frequency: 180KHz
Display: 0.36 inch 3-digit red digital tube
Protections: Short circuit, Input reverse polarity, Over temperature
Usage Examples
DIY Projects: Use the XH-M404 (also known as XL4016 or HCW-P402) module to regulate voltage in your DIY projects, ensuring a stable, adjustable power supply for various electronic components.
Prototyping & Development: Ideal for engineers and developers who need a reliable, adjustable voltage source for testing circuits and prototyping.
Adjustable Power Supplies: Turn any voltage source into an adjustable power supply to charge batteries, power DC motors, LEDs, and other electronic devices.
Automotive Applications: Regulate voltage in vehicle electrical systems to protect sensitive electronic components and extend their life.
Manual
Instructions for Use:

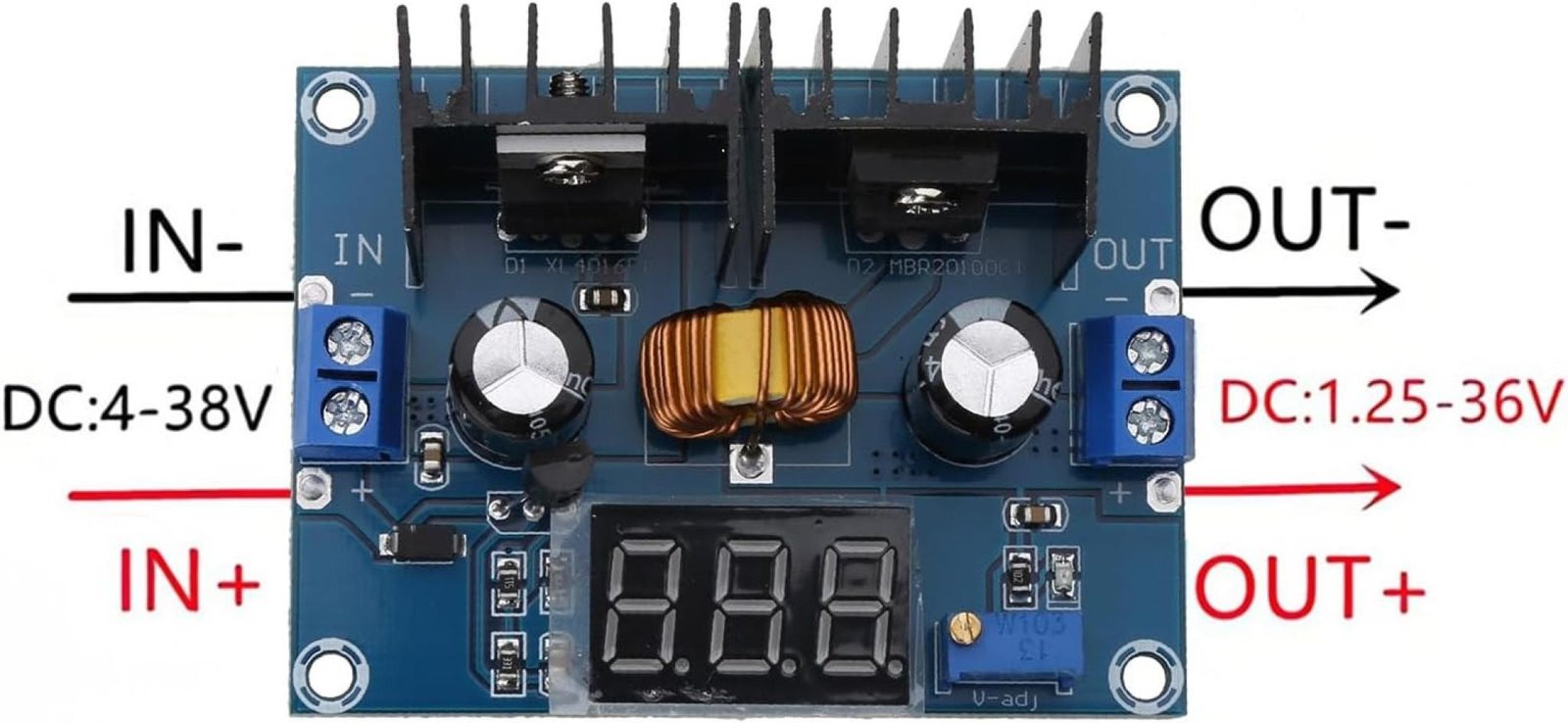

Connection:

Connect the input voltage source (4-40V DC) to the input terminals of the module.
Connect the load to the output terminals of the module.
Voltage Setting:

Use the potentiometer to adjust the output voltage. Turn clockwise to increase the voltage and counterclockwise to decrease it.
Be sure to adjust the voltage before connecting the load to avoid damage.
Protection and Precautions:

Please keep input and output voltage difference at least 2V.
For high current or long time use, 5A current is recommended. Please use fans or additional heat dissipation methods if power is very high.
This module is a voltage reducer (Buck), not a voltage booster (Boost).
Additional Notes:

The digital display shows the output voltage with an accuracy of 0.01V for low voltages and 0.1V for high voltages.
The working temperature of the module is -45°C to +85°C.

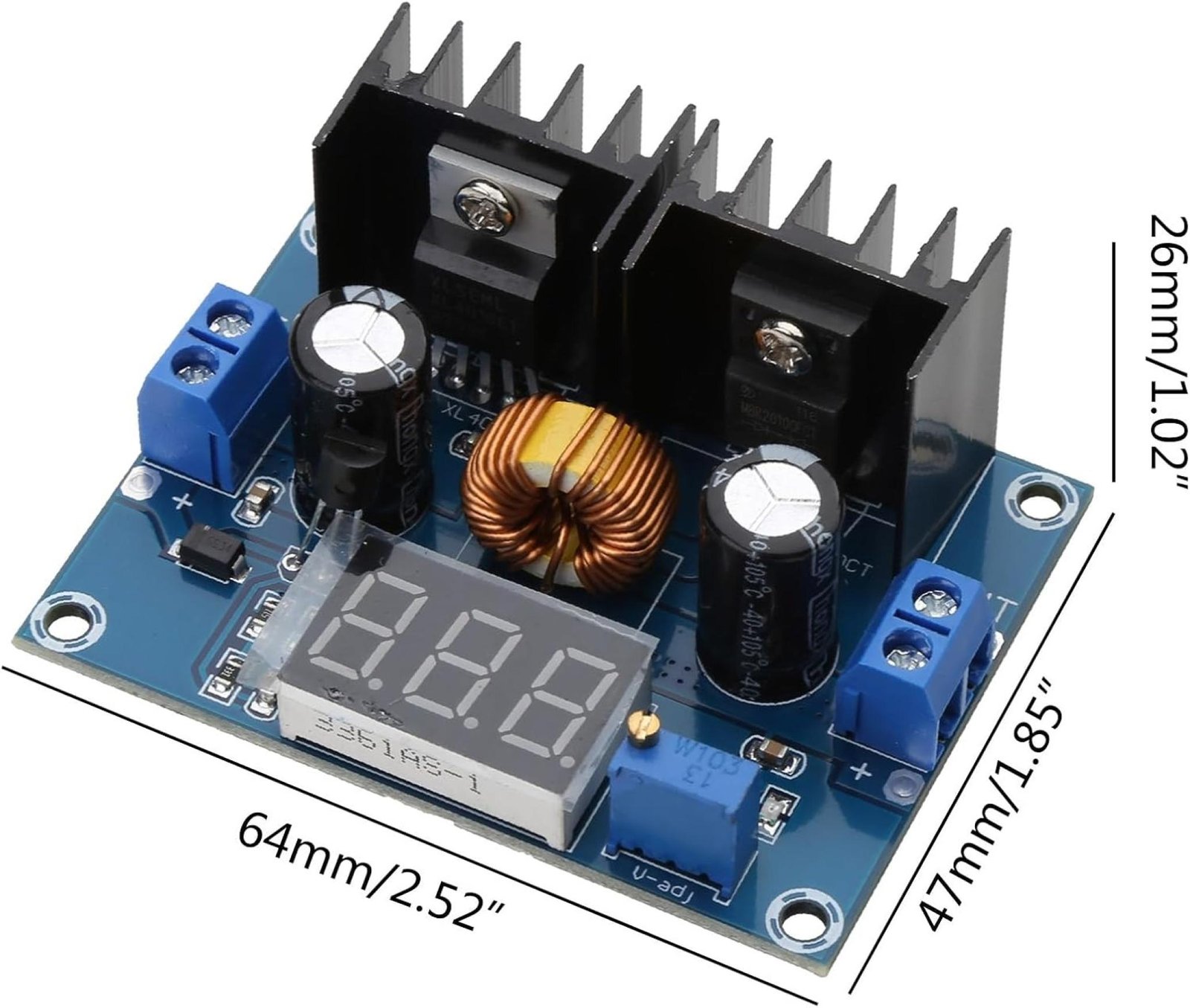

Please allow a measuring deviation of 1-3mm due to manual measurement.
Includes:

1 x XH-M404 Voltage Regulator Module (also known as XL4016 or HCW-P402)
This XH-M404 voltage regulator module, also known as XL4016 or HCW-P402, is a versatile and essential tool for any electronics laboratory, providing a safe and controllable power source for a wide range of applications.
